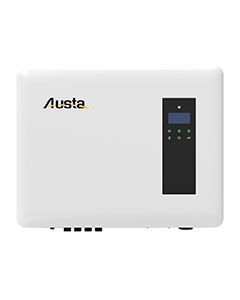

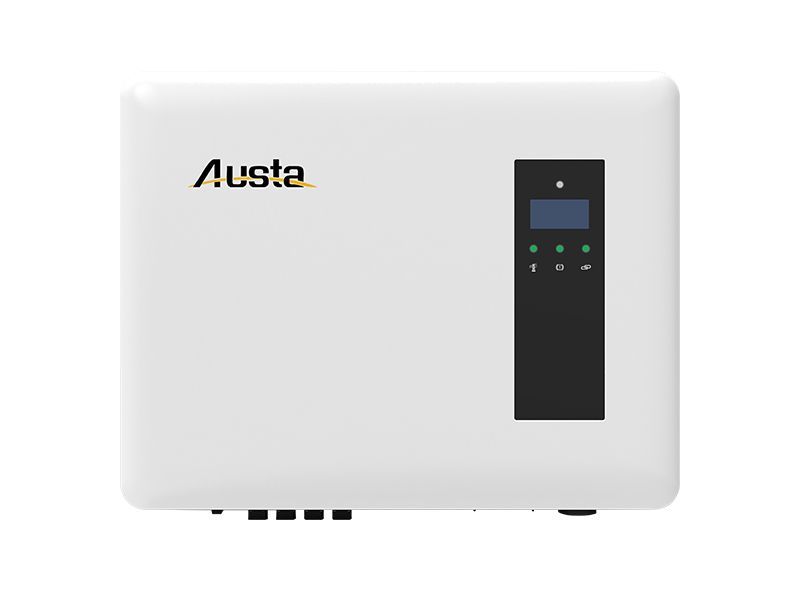

Austa 10kW Hybrid Inverter Three Phase | KS

10kW Hybrid Inverter Three Phase...

This compact and stylish three-phase hybrid inverter is the beginning of your sustainable energy journey!

Hybrid inverters can operate in numerous ways depending on the application. Predominantly, a three-phase inverter takes DC electricity which is supplied through the solar panels and converts this into AC electricity which is then distributed across a three-phase supply.

These inverters provide the highest percentage of efficiency ranging from more than 98.3% as well as having a large voltage range.

Using a three-phase inverter is extremely useful for homes that use a considerable amount of electricity e.g., large air conditioners, pool heaters, spas, saunas, and electric car chargers.

They primarily put out a larger and more consistent electrical load which allows them to power bigger items.

This inverter can also supply a great amount of backup power in the case of a power cut!

Having a three-phase inverter also means that you do not need to push the solar energy as much to get it out of the grid. You will have a lot less tripping off as you are increasing the local grid voltage less. In short, having a three-phase solar inverter will significantly reduce the chances of having any voltage rise issues!

With easy Wi-Fi configurations via the app and data checks on the display screen and app, this hybrid inverter is quick and efficient for any residential home.

The design is compact and elegant with minimal noise and integrated diecasting technology as well as quick plug terminals for easy installation!

With a larger voltage range, this allows the inverter to work more efficiently and reduces the risk of losing power.

Additional information:

• When you need more power than one inverter can provide, you can connect two or more inverters in parallel. This increases the total wattage that the inverters can produce and gives you added redundancy in case of a failure.

Controlling the inverter and monitoring its operation

• Inverter control is made easier with an innovative product, for example with an LCD display showing power, voltage, DC and AC current, as well as daily, monthly and yearly energy production.

• It is most convenient to do it from a computer, especially a tablet or smartphone. Monitor the installation as often as possible, and you will sooner notice that something is wrong with it. If there are any issues, please contact your installer immediately.

• An inverter synchronized with the grid (grid, hybrid) counts the energy produced by the solar panels, and at the same time reads the current drawn from the power grid. In this way, you can know the difference between the electricity you use for your own needs and the electricity that you feed into the grid. You can compare this data in different cycles (e.g. day, week, month, year).

• IP65 rated for extra weather protection.

• The warranty is 5 years for the hybrid inverter.

Dimensions:

Width: 534mm

Height: 418mm

Depth: 210mm

Weight: 27kg

Battery Type: Lithium Battery

Battery Voltage Range (V): 135-750

Max. Charge/Discharge Current (A): 25/25
